HCN4 Polyclonal Antibody

Formalin-fixed and paraffin embedded rat heart labeled with Anti-HCN4 Polyclonal Antibody, Unconjugated (bs-1691R) at 1:200 followed by conjugation to the secondary antibody and DAB staining.

Mouse heart lysates probed with HCN4 Polyclonal Antibody, Unconjugated (bs-1691R) at 1:500 dilution and 4˚C overnight incubation. Followed by conjugated secondary antibody incubation at 1:20000 for 60 min at 37˚C

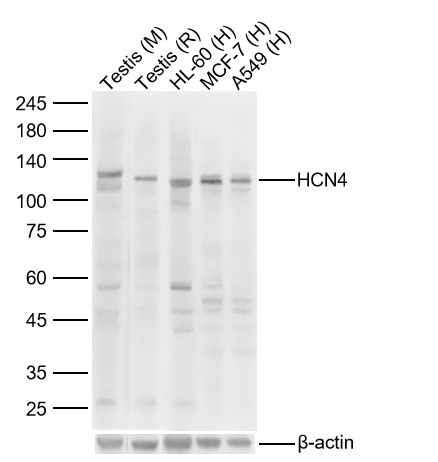

$Lane 1: Mouse Testis Lysates; Lane 2: Rat Testis Lysates; Lane 3: Human HL-60 cell Lysates; Lane 4: Human MCF-7 cell Lysates; Lane 5: Human A549 cell Lysates. Probed with HCN4 polyclonal Antibody, unconjugated (bs-1691R) at 1:1000 dilution and 4\u00b0C overnight incubation. Followed by conjugated secondary antibody incubation at 1:20000 for 60 min at 37˚C.$

Lane 1: Mouse Testis Lysates; Lane 2: Rat Testis Lysates; Lane 3: Human HL-60 cell Lysates; Lane 4: Human MCF-7 cell Lysates; Lane 5: Human A549 cell Lysates. Probed with HCN4 polyclonal Antibody, unconjugated (bs-1691R) at 1:1000 dilution and 4\u00b0C overnight incubation. Followed by conjugated secondary antibody incubation at 1:20000 for 60 min at 37˚C.

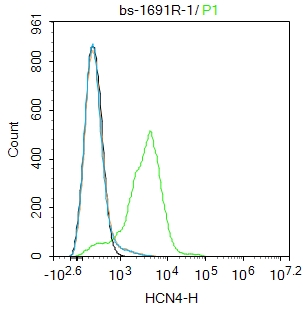

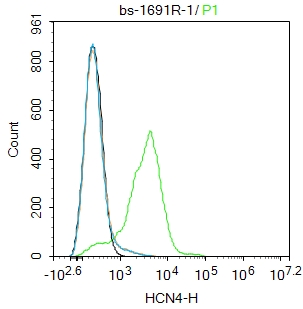

$MCF-7 cells were\u00a0 incubated in 5% BSA blocking buffer\u00a0for 30 min at room temperature. Cells were then stained with HCN4 Polyclonal Antibody(bs-1691R)at 1:100 dilution\u00a0in blocking buffer and\u00a0incubated for 30 min at\u00a0room temperature,\u00a0washed twice with 2%BSA in PBS,\u00a0followed by\u00a0secondary antibody incubation\u00a0for 40 min\u00a0at\u00a0room temperature. Acquisitions of 20,000 events were performed.\u00a0Cells stained with primary antibody\u00a0(green), and isotype control (orange).$

MCF-7 cells were\u00a0 incubated in 5% BSA blocking buffer\u00a0for 30 min at room temperature. Cells were then stained with HCN4 Polyclonal Antibody(bs-1691R)at 1:100 dilution\u00a0in blocking buffer and\u00a0incubated for 30 min at\u00a0room temperature,\u00a0washed twice with 2%BSA in PBS,\u00a0followed by\u00a0secondary antibody incubation\u00a0for 40 min\u00a0at\u00a0room temperature. Acquisitions of 20,000 events were performed.\u00a0Cells stained with primary antibody\u00a0(green), and isotype control (orange).

Applications

WB
IHC-P
IHC-F
IF(IHC-P)
IF(IHC-F)
IF(ICC)

Reactivity

Human
Mouse
Rat
Dog

Predicted Reactivity

Cow
Pig
Rabbit

Overview
Catalog #	bs-1691R
Product Name	HCN4 Polyclonal Antibody
Applications	WB, IHC-P, IHC-F, IF(IHC-P), IF(IHC-F), IF(ICC)
Reactivity	Human, Mouse, Rat, Dog
Predicted Reactivity	Cow, Pig, Rabbit
Specifications
Conjugation	Unconjugated
Host	Rabbit
Source	KLH conjugated synthetic peptide derived from human HCN4
Immunogen Range	501-600/1203
Clonality	Polyclonal
Isotype	IgG
Concentration	1ug/ul
Purification	Purified by Protein A.
Storage Buffer	0.01M TBS(pH7.4) with 1% BSA, 0.02% Proclin300 and 50% Glycerol.
Storage Condition	Shipped at 4°C. Store at -20°C for one year. Avoid repeated freeze/thaw cycles.
Target
Gene ID	10021
Swiss Prot	Q9Y3Q4
Subcellular location	Cell membrane
Synonyms	SSS2; Potassium/sodium hyperpolarization-activated cyclic nucleotide-gated channel 4; HCN4
Background	Hyperpolarization-activated ion channel with very slow activation and inactivation exhibiting weak selectivity for potassium over sodium ions. Contributes to the native pacemaker currents in heart (If) that regulate the rhythm of heart beat. May contribute to the native pacemaker currents in neurons (Ih). May mediate responses to sour stimuli.
Application Dilution
WB	1:300-5000
IHC-P	1:200-400
IHC-F	1:100-500
IF(IHC-P)	1:50-200
IF(IHC-F)	1:50-200
IF(ICC)	1:50-200
