OPA1 (9A7) Monoclonal Antibody

Flow cytometric analysis of SH-SY5Y cells with OPA1 (9A7) Monoclonal Antibody (bsm-54144R) at 1:100 dilution (red) compared with an unlabeled control (cells without incubation with primary antibody; black).

$IF(ICC) staining with OPA1 (9A7) Monoclonal Antibody (bsm-54144R) at 1:100 in SW480 cells (green). The nuclear counterstain is DAPI (blue). Cells were fixed in paraformaldehyde, permeabilized with 0.25% Triton X100\/PBS.$

IF(ICC) staining with OPA1 (9A7) Monoclonal Antibody (bsm-54144R) at 1:100 in SW480 cells (green). The nuclear counterstain is DAPI (blue). Cells were fixed in paraformaldehyde, permeabilized with 0.25% Triton X100\/PBS.

$IF(ICC) staining with OPA1 (9A7) Monoclonal Antibody (bsm-54144R) at 1:100 in SH-SY5Y cells (green). The nuclear counterstain is DAPI (blue). Cells were fixed in paraformaldehyde, permeabilized with 0.25% Triton X100\/PBS.$

IF(ICC) staining with OPA1 (9A7) Monoclonal Antibody (bsm-54144R) at 1:100 in SH-SY5Y cells (green). The nuclear counterstain is DAPI (blue). Cells were fixed in paraformaldehyde, permeabilized with 0.25% Triton X100\/PBS.

$IF(ICC) staining with OPA1 (9A7) Monoclonal Antibody (bsm-54144R) at 1:100 in Hela cells (green). The nuclear counterstain is DAPI (blue). Cells were fixed in paraformaldehyde, permeabilized with 0.25% Triton X100\/PBS.$

IF(ICC) staining with OPA1 (9A7) Monoclonal Antibody (bsm-54144R) at 1:100 in Hela cells (green). The nuclear counterstain is DAPI (blue). Cells were fixed in paraformaldehyde, permeabilized with 0.25% Triton X100\/PBS.

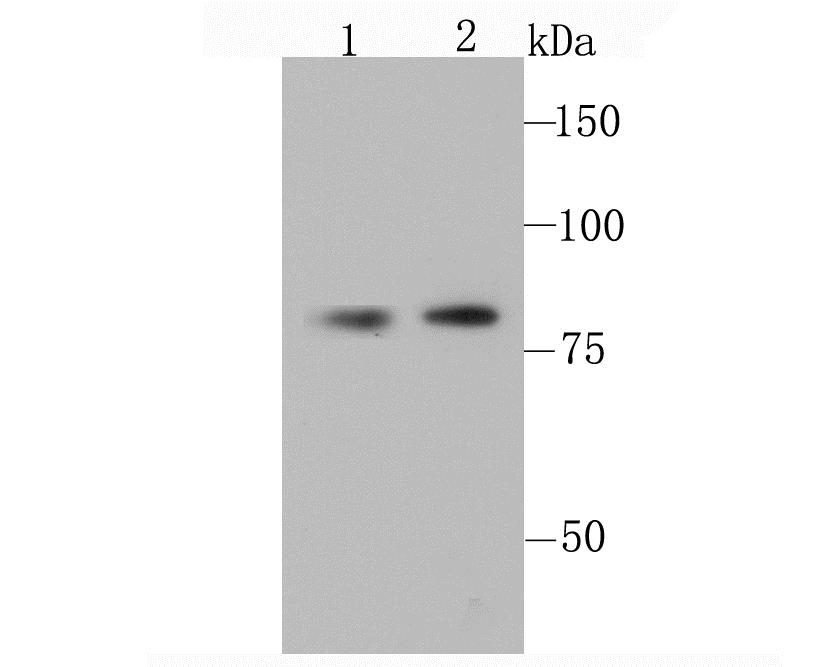

$Lane 1: Mouse Brain; Lane 2: A431 Cells; Probed with OPA1 (9A7) Monoclonal Antibody (bsm-54144R) at 1:1000 overnight at 4\u00b0C followed by a conjugated secondary antibody for 60 minutes at 37\u00b0C.$

Lane 1: Mouse Brain; Lane 2: A431 Cells; Probed with OPA1 (9A7) Monoclonal Antibody (bsm-54144R) at 1:1000 overnight at 4\u00b0C followed by a conjugated secondary antibody for 60 minutes at 37\u00b0C.

$Paraformaldehyde-fixed, paraffin embedded Mouse Cerebrum; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with OPA1 Monoclonal Antibody, Unconjugated (bsm-54144R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Mouse Cerebrum; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with OPA1 Monoclonal Antibody, Unconjugated (bsm-54144R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Rat Cerebrum; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with OPA1 Monoclonal Antibody, Unconjugated (bsm-54144R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Rat Cerebrum; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with OPA1 Monoclonal Antibody, Unconjugated (bsm-54144R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Human Cerebrum; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with OPA1 Monoclonal Antibody, Unconjugated (bsm-54144R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Human Cerebrum; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with OPA1 Monoclonal Antibody, Unconjugated (bsm-54144R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Mouse Kidney; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with OPA1 Monoclonal Antibody, Unconjugated (bsm-54144R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Mouse Kidney; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with OPA1 Monoclonal Antibody, Unconjugated (bsm-54144R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Rat Kidney; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with OPA1 Monoclonal Antibody, Unconjugated (bsm-54144R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Rat Kidney; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with OPA1 Monoclonal Antibody, Unconjugated (bsm-54144R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Human Kidney; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with OPA1 Monoclonal Antibody, Unconjugated (bsm-54144R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Human Kidney; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with OPA1 Monoclonal Antibody, Unconjugated (bsm-54144R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Mouse Heart; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with OPA1 Monoclonal Antibody, Unconjugated (bsm-54144R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Mouse Heart; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with OPA1 Monoclonal Antibody, Unconjugated (bsm-54144R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Rat Heart; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with OPA1 Monoclonal Antibody, Unconjugated (bsm-54144R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Rat Heart; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with OPA1 Monoclonal Antibody, Unconjugated (bsm-54144R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Human Heart; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with OPA1 Monoclonal Antibody, Unconjugated (bsm-54144R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Human Heart; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with OPA1 Monoclonal Antibody, Unconjugated (bsm-54144R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Mouse Eye; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with OPA1 Monoclonal Antibody, Unconjugated (bsm-54144R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Mouse Eye; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with OPA1 Monoclonal Antibody, Unconjugated (bsm-54144R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Rat Liver; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with OPA1 Monoclonal Antibody, Unconjugated (bsm-54144R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Rat Liver; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with OPA1 Monoclonal Antibody, Unconjugated (bsm-54144R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Human Liver; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with OPA1 Monoclonal Antibody, Unconjugated (bsm-54144R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Human Liver; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with OPA1 Monoclonal Antibody, Unconjugated (bsm-54144R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

Applications

WB
IHC-P
IHC-F
IF

Reactivity

Human
Mouse
Rat

Overview
Catalog #	bsm-54144r-100ul
Product Name	OPA1 (9A7) Monoclonal Antibody
Applications	WB, IHC-P, IHC-F, IF
Reactivity	Human, Mouse, Rat
Specifications
Conjugation	Unconjugated
Host	Rabbit
Source	C terminal Human OPA1
Clonality	Monoclonal
Clone #	9A7
Isotype	IgG
Concentration	Lot Dependent
Purification	Purified by Protein A.
Storage Buffer	0.01M TBS(pH7.4) with 1% BSA, 0.02% Proclin300 and 50% Glycerol.
Storage Condition	Store at 4°C for up to 2 weeks. For long term storage, store at -20°C in small aliquots to prevent freeze-thaw cycles.
Target
Gene ID	4976
Swiss Prot	O60313
Subcellular location	Mitochondrion
Synonyms	Dynamin-like 120 kDa protein mitochondrial; Optic atrophy protein 1; OPA1; KIAA0567.
Background	OPA1 is a cause of optic atrophy type 1. OPA1 is mostly expressed in the mitochondrial biogenesis. OPA1 is a cause of optic atrophy type 1. OPA1 is mostly expressed In retina but can also be expressed in brain, testis, heart and skeletal muscles. This dynamin-related GTPase that is essential for normal mitochondrial morphology by regulating the equilibrium between mitochondrial fusion and mitochondrial fission.
Application Dilution
WB	1:500-2000
IHC-P	1:100-200
IHC-F	1:100-200
IF	1:100-200
