ZO-1 Monoclonal Antibody

$Paraformaldehyde-fixed, paraffin embedded Human Prostate Cancer; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; Antibody incubation with ZO-1 Monoclonal Antibody, Unconjugated(bsm-41327M) at 1:1000 overnight at 4\u00b0C, followed by conjugation to the bs-40296G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Human Prostate Cancer; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; Antibody incubation with ZO-1 Monoclonal Antibody, Unconjugated(bsm-41327M) at 1:1000 overnight at 4\u00b0C, followed by conjugation to the bs-40296G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Human Spleen; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; Antibody incubation with ZO-1 Monoclonal Antibody, Unconjugated(bsm-41327M) at 1:1000 overnight at 4\u00b0C, followed by conjugation to the bs-40296G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Human Spleen; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; Antibody incubation with ZO-1 Monoclonal Antibody, Unconjugated(bsm-41327M) at 1:1000 overnight at 4\u00b0C, followed by conjugation to the bs-40296G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Human Kidney; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; Antibody incubation with ZO-1 Monoclonal Antibody, Unconjugated(bsm-41327M) at 1:1000 overnight at 4\u00b0C, followed by conjugation to the bs-40296G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Human Kidney; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; Antibody incubation with ZO-1 Monoclonal Antibody, Unconjugated(bsm-41327M) at 1:1000 overnight at 4\u00b0C, followed by conjugation to the bs-40296G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Human Fundus; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; Antibody incubation with ZO-1 Monoclonal Antibody, Unconjugated(bsm-41327M) at 1:1000 overnight at 4\u00b0C, followed by conjugation to the bs-40296G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Human Fundus; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; Antibody incubation with ZO-1 Monoclonal Antibody, Unconjugated(bsm-41327M) at 1:1000 overnight at 4\u00b0C, followed by conjugation to the bs-40296G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Human Pancreatic Cancer; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; Antibody incubation with ZO-1 Monoclonal Antibody, Unconjugated(bsm-41327M) at 1:1000 overnight at 4\u00b0C, followed by conjugation to the bs-40296G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Human Pancreatic Cancer; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; Antibody incubation with ZO-1 Monoclonal Antibody, Unconjugated(bsm-41327M) at 1:1000 overnight at 4\u00b0C, followed by conjugation to the bs-40296G-HRP and DAB (C-0010) staining.

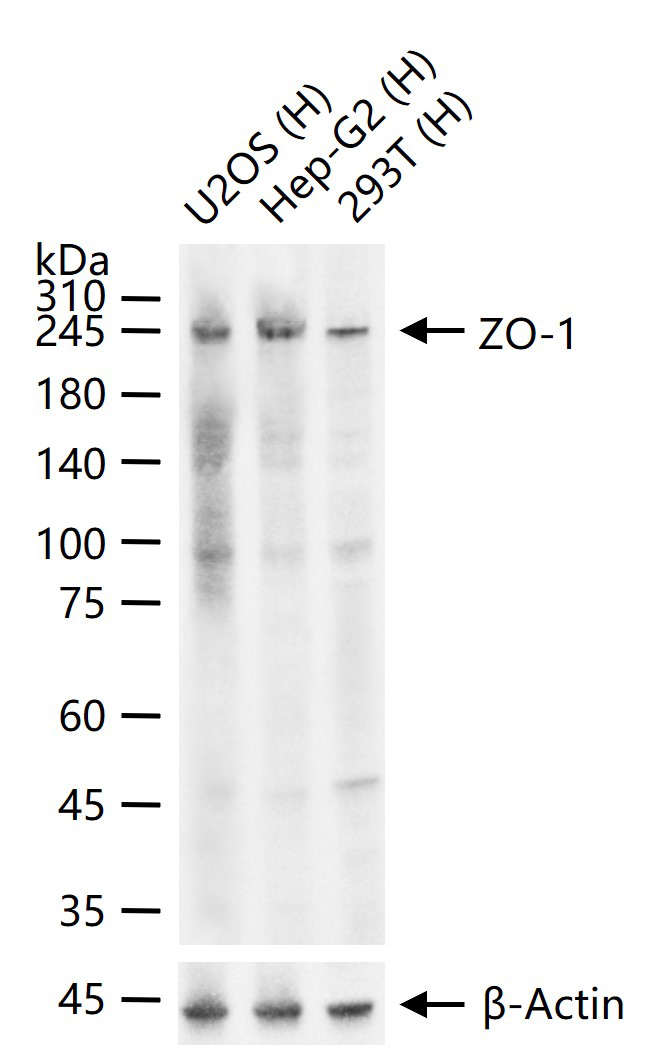

$25 ug total protein per lane of various lysates (see on figure) probed with ZO-1 monoclonal antibody, unconjugated (bsm-41327M) at 1:1000 dilution and 4\u00b0C overnight incubation. Followed by conjugated secondary antibody incubation at r.t. for 60 min.$

25 ug total protein per lane of various lysates (see on figure) probed with ZO-1 monoclonal antibody, unconjugated (bsm-41327M) at 1:1000 dilution and 4\u00b0C overnight incubation. Followed by conjugated secondary antibody incubation at r.t. for 60 min.

$4% Paraformaldehyde-fixed MCF-7 (H) cell; Antibody incubation with (ZO-1) monoclonal Antibody, unconjugated (bsm-41327M) 1:100, 90 min at 37\u00b0C; followed by conjugated Goat Anti-Mouse IgG antibody (green, bs-650296G-BF488) at 37\u00b0C for 90 min, DAPI (blue, C02-04002) was used to stain the cell nuclei. PBS instead of the primary antibody was used as the blank control.$

4% Paraformaldehyde-fixed MCF-7 (H) cell; Antibody incubation with (ZO-1) monoclonal Antibody, unconjugated (bsm-41327M) 1:100, 90 min at 37\u00b0C; followed by conjugated Goat Anti-Mouse IgG antibody (green, bs-650296G-BF488) at 37\u00b0C for 90 min, DAPI (blue, C02-04002) was used to stain the cell nuclei. PBS instead of the primary antibody was used as the blank control.

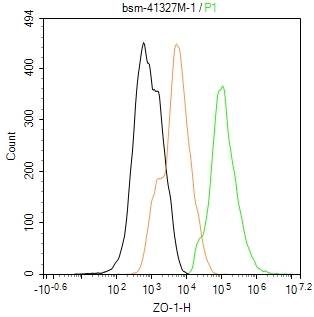

$The MCF-7 (H) cells were incubated in 5%BSA to block non-specific protein-protein interactions (30 min at r.t.) , followed by secondary antibody incubation for 40 min at room temperature. Primary Antibody (green): Mouse Anti-ZO-1 antibody (bsm-41327M): 1 \u03bcg\/10^6 cells; Isotype Control (orange): Mouse IgG (bs-0296P). Blank control (black): PBS. Acquisition of 20,000 events was performed.$

The MCF-7 (H) cells were incubated in 5%BSA to block non-specific protein-protein interactions (30 min at r.t.) , followed by secondary antibody incubation for 40 min at room temperature. Primary Antibody (green): Mouse Anti-ZO-1 antibody (bsm-41327M): 1 \u03bcg\/10^6 cells; Isotype Control (orange): Mouse IgG (bs-0296P). Blank control (black): PBS. Acquisition of 20,000 events was performed.

Applications

WB
ICC/IF

Reactivity

Human

Overview
Catalog #	bsm-41327m
Product Name	ZO-1 Monoclonal Antibody
Applications	WB, ICC/IF
Reactivity	Human
Specifications
Conjugation	Unconjugated
Host	Mouse
Source	Recombinant human ZO-1 protein
Clonality	Monoclonal
Isotype	IgG
Concentration	1ug/ul
Purification	Purified by Protein A.
Storage Buffer	0.01M TBS(pH7.4) with 1% BSA, 0.02% Proclin300 and 50% Glycerol.
Storage Condition	Shipped at 4C. Store at -20C for one year. Avoid repeated freeze/thaw cycles.
Target
Gene ID	7082
Swiss Prot	Q07157
Subcellular location	Cytoplasm, Cell membrane
Synonyms	ZO1_HUMAN; Tight junction protein ZO-1; TJP1; ZO1; Tight junction protein 1; Zona occludens protein 1; Zonula occludens protein 1; ZO1 tight junction protein;
Background	The N-terminal may be involved in transducing a signal required for tight junction assembly, while the C-terminal may have specific properties of tight junctions. The alpha domain might be involved in stabilizing junctions. Plays a role in the regulation of cell migration by targeting CDC42BPB to the leading edge of migrating cells.
Application Dilution
WB	1:300-5000
ICC/IF	1:50-100
