ATG5/APG5L Monoclonal Antibody

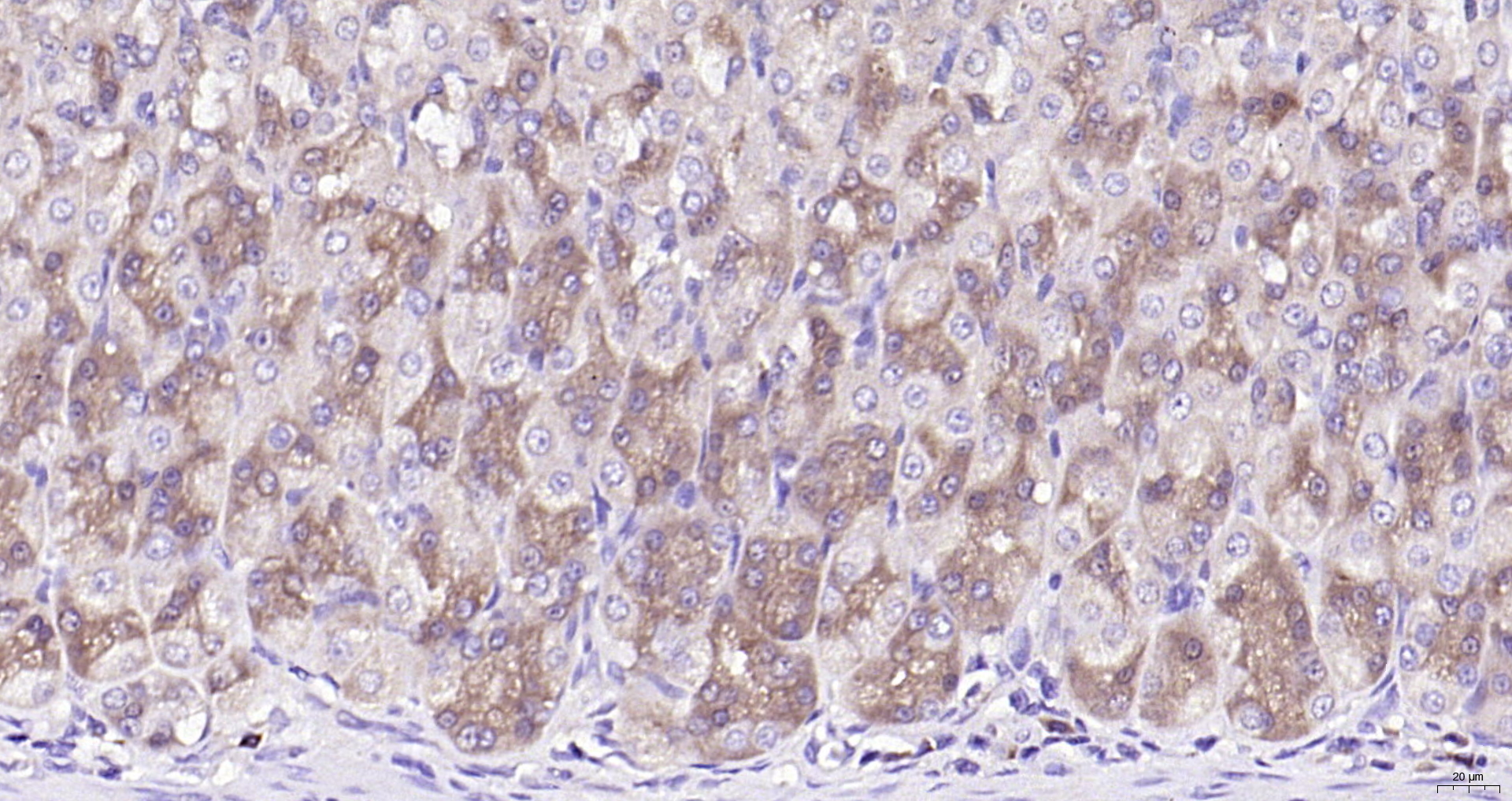

$Paraformaldehyde-fixed, paraffin embedded (rat stomach); Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15min; Block endogenous peroxidase by 3% hydrogen peroxide for 20 minutes; Blocking buffer (normal goat serum) at 37\u00b0C for 30min; Antibody incubation with (ATG5) Monoclonal Antibody, Unconjugated (ascites of bsm-33385M 5D7) at 1:2000 overnight at 4\u00b0C, followed by operating according to SP Kit(Mouse) (sp-0024) instructions and DAB staining.$

Paraformaldehyde-fixed, paraffin embedded (rat stomach); Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15min; Block endogenous peroxidase by 3% hydrogen peroxide for 20 minutes; Blocking buffer (normal goat serum) at 37\u00b0C for 30min; Antibody incubation with (ATG5) Monoclonal Antibody, Unconjugated (ascites of bsm-33385M 5D7) at 1:2000 overnight at 4\u00b0C, followed by operating according to SP Kit(Mouse) (sp-0024) instructions and DAB staining.

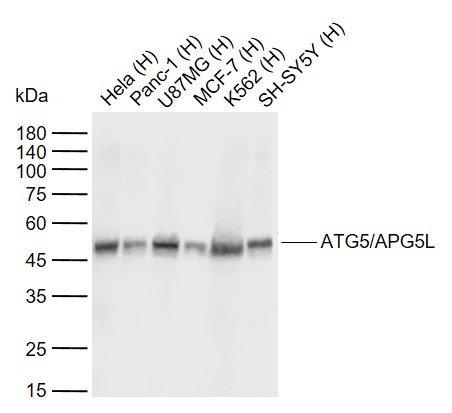

$Lane 1: Human Hela cell lysates; Lane 2: Human Panc-1 cell lysates; Lane 3: Human U87MG cell lysates; Lane 4: Human MCF-7 cell lysates; Lane 5: Human K562 cell lysates; Lane 6: Human SH-SY5Y cell lysates probed with ATG5\/APG5L Monoclonal Antibody, Unconjugated (bsm-33385M) at 1:1000 dilution and 4\u00b0C overnight incubation. Followed by conjugated secondary antibody incubation at 1:20000 for 60 min at 37˚C.$

Lane 1: Human Hela cell lysates; Lane 2: Human Panc-1 cell lysates; Lane 3: Human U87MG cell lysates; Lane 4: Human MCF-7 cell lysates; Lane 5: Human K562 cell lysates; Lane 6: Human SH-SY5Y cell lysates probed with ATG5\/APG5L Monoclonal Antibody, Unconjugated (bsm-33385M) at 1:1000 dilution and 4\u00b0C overnight incubation. Followed by conjugated secondary antibody incubation at 1:20000 for 60 min at 37˚C.

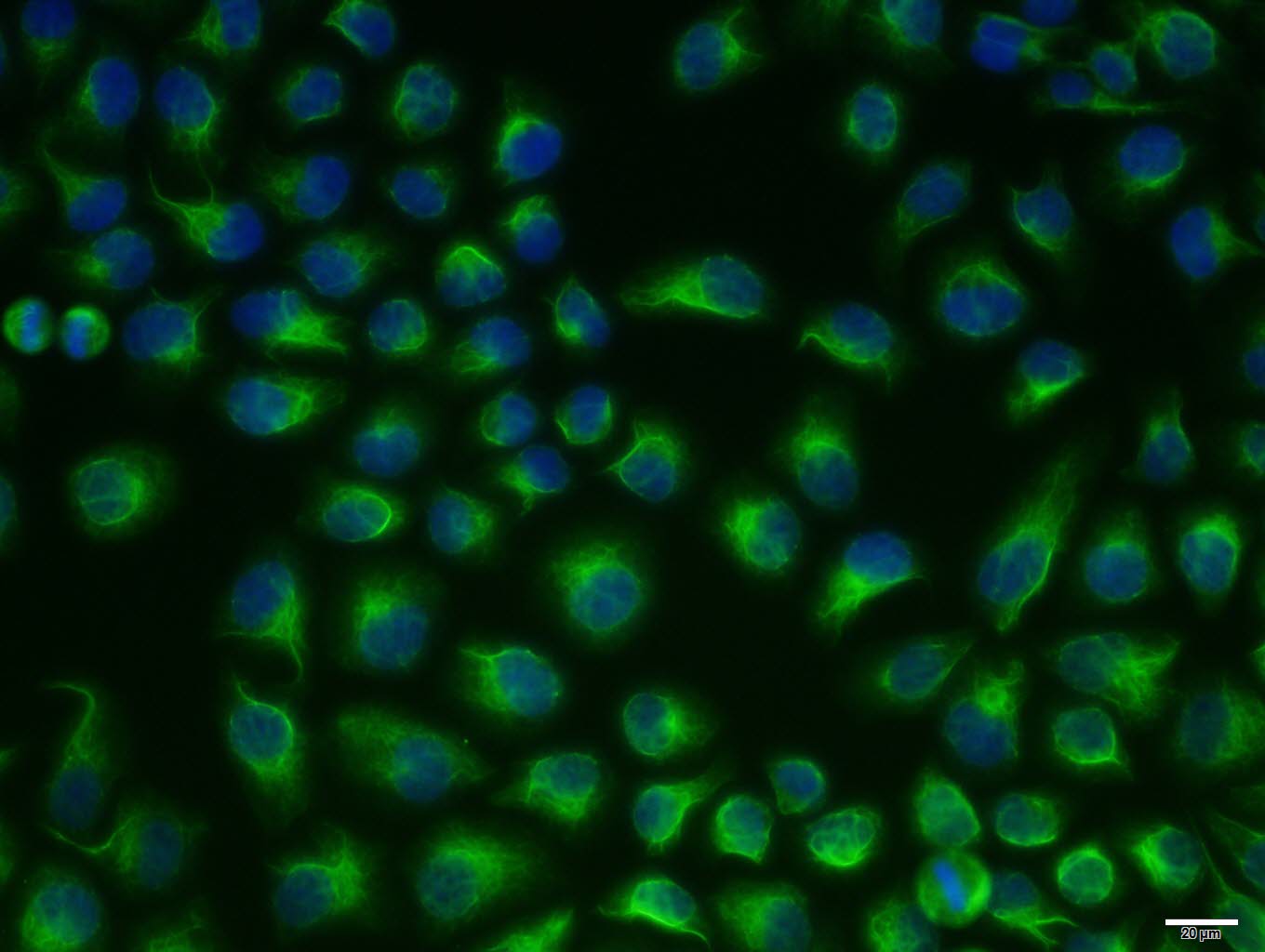

$Hela cell; 4% Paraformaldehyde-fixed; Triton X-100 at room temperature for 20 min; Blocking buffer (normal goat serum, C-0005) at 37\u00b0C for 20 min; Antibody incubation with (ATG5\/APG5L) monoclonal Antibody, Unconjugated (bsm-33385M) 1:100, 90 minutes at 37\u00b0C; followed by a conjugated Goat Anti-Mouse IgG antibody at 37\u00b0C for 90 minutes, DAPI (blue, C02-04002) was used to stain the cell nuclei.$

Hela cell; 4% Paraformaldehyde-fixed; Triton X-100 at room temperature for 20 min; Blocking buffer (normal goat serum, C-0005) at 37\u00b0C for 20 min; Antibody incubation with (ATG5\/APG5L) monoclonal Antibody, Unconjugated (bsm-33385M) 1:100, 90 minutes at 37\u00b0C; followed by a conjugated Goat Anti-Mouse IgG antibody at 37\u00b0C for 90 minutes, DAPI (blue, C02-04002) was used to stain the cell nuclei.

$Hela cell; 4% Paraformaldehyde-fixed; Triton X-100 at room temperature for 20 min; Blocking buffer (normal goat serum, C-0005) at 37\u00b0C for 20 min; Antibody incubation with (MCF7 cell; 4% Paraformaldehyde-fixed; Triton X-100 at room temperature for 20 min; Blocking buffer (normal goat serum, C-0005) at 37\u00b0C for 20 min; Antibody incubation with (XXX) polyclonal Antibody, Unconjugated (bs-0061R) 1:100, 90 minutes at 37\u00b0C; followed by a conjugated Goat Anti-Rabbit IgG antibody at 37\u00b0C for 90 minutes, DAPI (blue, C02-04002) was used to stain the cell nuclei.) polyclonal Antibody, Unconjugated (bsm-33385M) 1:100, 90 minutes at 37\u00b0C; followed by a conjugated Goat Anti-Rabbit IgG antibody at 37\u00b0C for 90 minutes, DAPI (blue, C02-04002) was used to stain the cell nuclei.$

Hela cell; 4% Paraformaldehyde-fixed; Triton X-100 at room temperature for 20 min; Blocking buffer (normal goat serum, C-0005) at 37\u00b0C for 20 min; Antibody incubation with (MCF7 cell; 4% Paraformaldehyde-fixed; Triton X-100 at room temperature for 20 min; Blocking buffer (normal goat serum, C-0005) at 37\u00b0C for 20 min; Antibody incubation with (XXX) polyclonal Antibody, Unconjugated (bs-0061R) 1:100, 90 minutes at 37\u00b0C; followed by a conjugated Goat Anti-Rabbit IgG antibody at 37\u00b0C for 90 minutes, DAPI (blue, C02-04002) was used to stain the cell nuclei.) polyclonal Antibody, Unconjugated (bsm-33385M) 1:100, 90 minutes at 37\u00b0C; followed by a conjugated Goat Anti-Rabbit IgG antibody at 37\u00b0C for 90 minutes, DAPI (blue, C02-04002) was used to stain the cell nuclei.

Applications

IHC-P
IHC-F
IF
ICC

Reactivity

Predicted Reactivity

Human
Mouse

Overview
Catalog #	bsm-33385M
Product Name	ATG5/APG5L Monoclonal Antibody
Applications	IHC-P, IHC-F, IF, ICC
Reactivity	Rat
Predicted Reactivity	Human, Mouse
Specifications
Conjugation	Unconjugated
Host	Mouse
Source	Recombinant ATG5 Protein
Clonality	Monoclonal
Clone #	5D7
Isotype	IgG
Concentration	1mg/ml
Purification	Purified by Protein G.
Storage Buffer	0.01M TBS(pH7.4) with 1% BSA, 0.02% Proclin300 and 50% Glycerol.
Storage Condition	Shipped at 4°C. Store at -20°C for one year. Avoid repeated freeze/thaw cycles.
Target
Gene ID	9474
Swiss Prot	Q9H1Y0
Subcellular location	Cytoplasm
Synonyms	ATG5; APG 5; APG 5L; APG5; APG5 autophagy 5 like; APG5 like; APG5-like; APG5L; Apoptosis specific protein; Apoptosis-specific protein; ASP; ATG 5; ATG5; ATG5 autophagy related 5 homolog; Autophagy protein 5; hAPG5; Homolog of S Cerevisiae autophagy 5; ATG5_ .
Background	Required for autophagy. Conjugates to ATG12 and associates with isolation membrane to form cup-shaped isolation membrane and autophagosome. The conjugate detaches from the membrane immediately before or after autophagosome formation is completed (By similarity). May play an important role in the apoptotic process, possibly within the modified cytoskeleton. Its expression is a relatively late event in the apoptotic process, occurring downstream of caspase activity.
Application Dilution
IHC-P	1:200-400
IHC-F	1:100-500
IF
ICC	1:100-500
