PD-1 Polyclonal Antibody

$Formalin-fixed and paraffin embedded mouse colon labeled with Anti-PD-1\/CD279 Polyclonal Antibody, Unconjugated (bs-1867R) at 1:200 followed by conjugation to the secondary antibody and DAB staining.$

Formalin-fixed and paraffin embedded mouse colon labeled with Anti-PD-1\/CD279 Polyclonal Antibody, Unconjugated (bs-1867R) at 1:200 followed by conjugation to the secondary antibody and DAB staining.

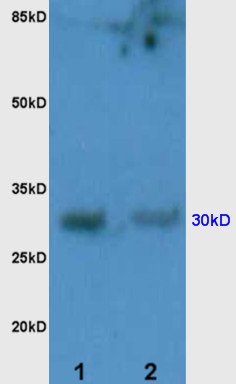

$L1 human kidney lysates L2 rat brain lysates probed with Anti PD-1\/CD279 Polyclonal Antibody, Unconjugated (bs-1867R) at 1:200 overnight at 4˚C. Followed by conjugation to secondary antibody (bs-0295G-HRP) at 1:3000 for 90 min at 37˚C. Predicted band 30kD. Observed band size:30kD.\\n$

L1 human kidney lysates L2 rat brain lysates probed with Anti PD-1\/CD279 Polyclonal Antibody, Unconjugated (bs-1867R) at 1:200 overnight at 4˚C. Followed by conjugation to secondary antibody (bs-0295G-HRP) at 1:3000 for 90 min at 37˚C. Predicted band 30kD. Observed band size:30kD.\\n

$Lane 1: Hela Cell lysates; Lane 2: Molt-4 Cell Lysates; Lane 3: Jurkat Cell Lysates; Probed with PD-1 Polyclonal Antibody, unconjugated (bs-1867R) at 1:500 overnight at 4\u00b0C followed by a conjugated secondary antibody for 60 minutes at 37\u00b0C.$

Lane 1: Hela Cell lysates; Lane 2: Molt-4 Cell Lysates; Lane 3: Jurkat Cell Lysates; Probed with PD-1 Polyclonal Antibody, unconjugated (bs-1867R) at 1:500 overnight at 4\u00b0C followed by a conjugated secondary antibody for 60 minutes at 37\u00b0C.

$Mouse spleen cells were fixed with 70% ice-cold methanol overnight at 4\u2103 and then incubated in 1 X PBS\/2%BSA\/10% goat serum to block non-specific protein-protein interactions. The cells were then probed with rabbit anti-PD-1 Polyclonal Antibody, with PE-CY7 conjugation (bs-1867R-PE-CY7) (green) at 1:100 for 30 minutes at room temperature. The graph compares PD-1 antibody to unstained cells (blue) and isotype control (orange).$

Mouse spleen cells were fixed with 70% ice-cold methanol overnight at 4\u2103 and then incubated in 1 X PBS\/2%BSA\/10% goat serum to block non-specific protein-protein interactions. The cells were then probed with rabbit anti-PD-1 Polyclonal Antibody, with PE-CY7 conjugation (bs-1867R-PE-CY7) (green) at 1:100 for 30 minutes at room temperature. The graph compares PD-1 antibody to unstained cells (blue) and isotype control (orange).

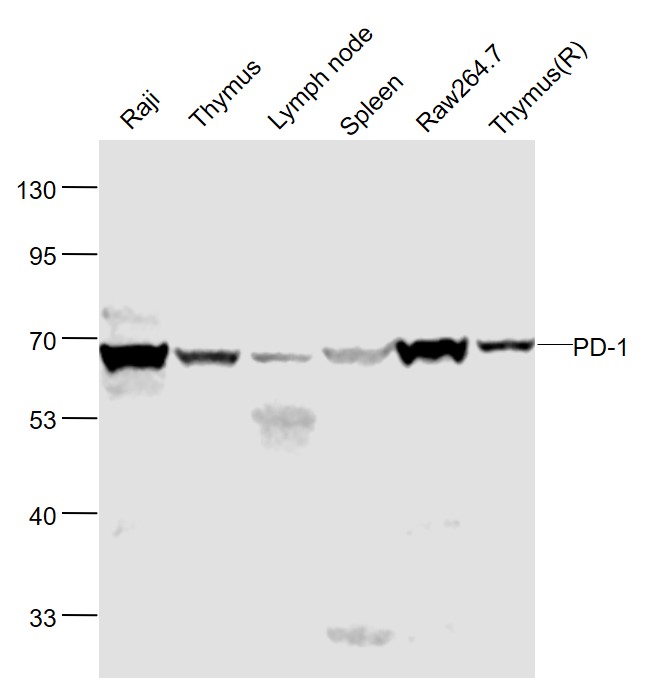

$Lane 1: Rat Raji cell lysates; Lane 2: Mouse Thymus lysates; Lane 3: Mouse Lymph node lysates; Lane 4: Mouse Spleen lysates; Lane 5: Mouse RAW264.7 cell lysates; Lane 6: Rat Thymus lysates probed with PD-1\/CD279 Polyclonal Antibody, Unconjugated (bs-1867R) at 1:1000 dilution and 4˚C overnight incubation. Followed by conjugated secondary antibody incubation at 1:20000 for 60 min at 37˚C.$

Lane 1: Rat Raji cell lysates; Lane 2: Mouse Thymus lysates; Lane 3: Mouse Lymph node lysates; Lane 4: Mouse Spleen lysates; Lane 5: Mouse RAW264.7 cell lysates; Lane 6: Rat Thymus lysates probed with PD-1\/CD279 Polyclonal Antibody, Unconjugated (bs-1867R) at 1:1000 dilution and 4˚C overnight incubation. Followed by conjugated secondary antibody incubation at 1:20000 for 60 min at 37˚C.

$Paraformaldehyde-fixed, paraffin embedded (rat spleen); Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15min; Block endogenous peroxidase by 3% hydrogen peroxide for 20 minutes; Blocking buffer (normal goat serum) at 37\u00b0C for 30min; Antibody incubation with (PD-1 ) Polyclonal Antibody, Unconjugated (bs-1867R) at 1:200 overnight at 4\u00b0C, followed by operating according to SP Kit(Rabbit) (sp-0023) instructionsand DAB staining.$

Paraformaldehyde-fixed, paraffin embedded (rat spleen); Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15min; Block endogenous peroxidase by 3% hydrogen peroxide for 20 minutes; Blocking buffer (normal goat serum) at 37\u00b0C for 30min; Antibody incubation with (PD-1 ) Polyclonal Antibody, Unconjugated (bs-1867R) at 1:200 overnight at 4\u00b0C, followed by operating according to SP Kit(Rabbit) (sp-0023) instructionsand DAB staining.

$Paraformaldehyde-fixed, paraffin embedded (human tonsil); Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15min; Block endogenous peroxidase by 3% hydrogen peroxide for 20 minutes; Blocking buffer (normal goat serum) at 37\u00b0C for 30min; Antibody incubation with (PD-1 ) Polyclonal Antibody, Unconjugated (bs-1867R) at 1:200 overnight at 4\u00b0C, followed by operating according to SP Kit(Rabbit) (sp-0023) instructionsand DAB staining.$

Paraformaldehyde-fixed, paraffin embedded (human tonsil); Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15min; Block endogenous peroxidase by 3% hydrogen peroxide for 20 minutes; Blocking buffer (normal goat serum) at 37\u00b0C for 30min; Antibody incubation with (PD-1 ) Polyclonal Antibody, Unconjugated (bs-1867R) at 1:200 overnight at 4\u00b0C, followed by operating according to SP Kit(Rabbit) (sp-0023) instructionsand DAB staining.

Applications

WB
ELISA
FCM
IHC-P
IHC-F
IF(IHC-P)
IF(IHC-F)
IF(ICC)

Reactivity

Human
Mouse
Rat

Overview
Catalog #	bs-1867R
Product Name	PD-1 Polyclonal Antibody
Applications	WB, ELISA, FCM, IHC-P, IHC-F, IF(IHC-P), IF(IHC-F), IF(ICC)
Reactivity	Human, Mouse, Rat
Specifications
Conjugation	Unconjugated
Host	Rabbit
Source	KLH conjugated synthetic peptide derived from human PD-1
Clonality	Polyclonal
Clone #	#REF!
Isotype	IgG
Concentration	1ug/ul
Purification	Purified by Protein A.
Storage Buffer	0.01M TBS(pH7.4) with 1% BSA, 0.02% Proclin300 and 50% Glycerol.
Storage Condition	Shipped at 4_. Store at -20_ for one year. Avoid repeated freeze/thaw cycles.
Target
Gene ID	5133
Swiss Prot	Q15116
Subcellular location	Cell membrane
Synonyms	PD1; PD-1; CD279; SLEB2; hPD-1; hPD-l; hSLE1; Programmed cell death protein 1; Protein PD-1; PDCD1
Background	Inhibitory cell surface receptor involved in the regulation of T-cell function during immunity and tolerance. Upon ligand binding, inhibits T-cell effector functions in an antigen-specific manner. Possible cell death inducer, in association with other factors.
Application Dilution
WB	1:300-5000
ELISA	1:500-1000
FCM	1:20-100
IHC-P	1:200-400
IHC-F	1:100-500
IF(IHC-P)	1:50-200
IF(IHC-F)	1:50-200
IF(ICC)	1:50-200
