phospho-DNM1L (Ser616) Polyclonal Antibody

$Paraformaldehyde-fixed, paraffin embedded Mouse brain; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15min; Block endogenous peroxidase by 3% hydrogen peroxide for 20 minutes; Blocking buffer (normal goat serum) at 37\u00b0C for 30min; Antibody incubation with DRP1 (Ser616) Polyclonal Antibody, Unconjugated (bs-12702R) at 1:400 overnight at 4\u00b0C, DAB staining.$

Paraformaldehyde-fixed, paraffin embedded Mouse brain; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15min; Block endogenous peroxidase by 3% hydrogen peroxide for 20 minutes; Blocking buffer (normal goat serum) at 37\u00b0C for 30min; Antibody incubation with DRP1 (Ser616) Polyclonal Antibody, Unconjugated (bs-12702R) at 1:400 overnight at 4\u00b0C, DAB staining.

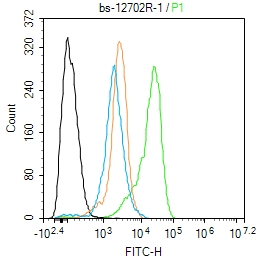

$U2-OS cells were fixed with 4% PFA for 10min at room temperature,permeabilized with 90% ice-cold methanol for 20 min at -20\u2103, and incubated in 5% BSA blocking buffer for 30 min at room temperature. Cells were then stained with DRP1 (Ser616) Polyclonal Antibody(bs-12702R)at 1:100 dilution in blocking buffer and incubated for 30 min at room temperature, washed twice with 2%BSA in PBS, followed by secondary antibody incubation for 40 min at room temperature. Acquisitions of 20,000 events were performed. Cells stained with primary antibody (green), and isotype control (orange).$

U2-OS cells were fixed with 4% PFA for 10min at room temperature,permeabilized with 90% ice-cold methanol for 20 min at -20\u2103, and incubated in 5% BSA blocking buffer for 30 min at room temperature. Cells were then stained with DRP1 (Ser616) Polyclonal Antibody(bs-12702R)at 1:100 dilution in blocking buffer and incubated for 30 min at room temperature, washed twice with 2%BSA in PBS, followed by secondary antibody incubation for 40 min at room temperature. Acquisitions of 20,000 events were performed. Cells stained with primary antibody (green), and isotype control (orange).

Applications

ELISA
IHC-P
IHC-F
IF(IHC-P)
IF(IHC-F)
IF(ICC)

Reactivity

Human
Mouse

Predicted Reactivity

Rat
Dog
Pig
GuineaPig

Overview
Catalog #	bs-12702R
Product Name	phospho-DNM1L (Ser616) Polyclonal Antibody
Applications	ELISA IHC-P IHC-F IF(IHC-P) IF(IHC-F) IF(ICC)
Reactivity	Human, Mouse
Predicted Reactivity	Rat, Dog, Pig, GuineaPig
Specifications
Conjugation	Unconjugated
Host	Rabbit
Source	KLH conjugated synthesised phosphopeptide derived from human DRP1 around the phosphorylation site of Ser616
Modification Site	Ser616
Clonality	Polyclonal
Isotype	IgG
Concentration	1ug/ul
Purification	Purified by Protein A.
Storage Buffer	0.01M TBS(pH7.4) with 1% BSA, 0.02% Proclin300 and 50% Glycerol.
Storage Condition	Shipped at 4℃. Store at -20℃ for one year. Avoid repeated freeze/thaw cycles.
Target
Gene ID	10059
Swiss Prot	O00429
Subcellular location	Cytoplasm
Synonyms	DRP1 (phospho S616); p-DRP1 (phospho S616); P-DRP1 (Ser616); DLP1; dnm1l; DNM1L_HUMAN; Dnm1p/Vps1p-like protein; DVLP; Dymple; Dynamin 1 like; Dynamin family member proline-rich carboxyl-terminal domain less; Dynamin like protein; Dynamin related protein 1; Dynamin-1-like protein; Dynamin-like protein 4; Dynamin-like protein; Dynamin-like protein IV; Dynamin-related protein 1; DYNIV 11; FLJ41912; HdynIV; VPS1.
Background	This gene encodes a member of the dynamin superfamily of GTPases. The encoded protein mediates mitochondrial and peroxisomal division, and is involved in developmentally regulated apoptosis and programmed necrosis. Dysfunction of this gene is implicated in several neurological disorders, including Alzheimer's disease. Mutations in this gene are associated with the autosomal dominant disorder, encephalopathy, lethal, due to defective mitochondrial and peroxisomal fission (EMPF). Alternative splicing results in multiple transcript variants encoding different isoforms. [provided by RefSeq, Jun 2013]
Application Dilution
ELISA	1:500-1000
IHC-P	1:200-400
IHC-F	1:100-500
IF(IHC-P)	1:50-200
IF(IHC-F)	1:50-200
IF(ICC)	1:50-200
